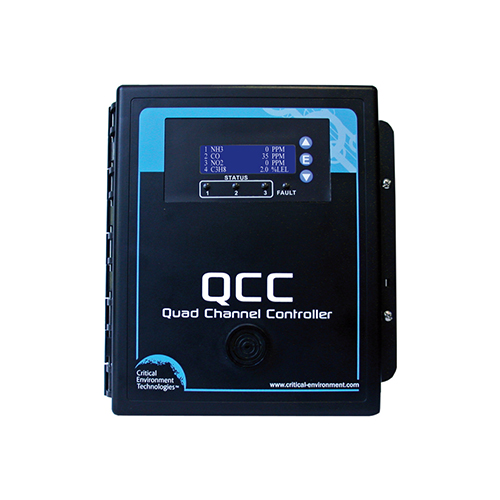

CET QCC Quad Channel Controller (discontinued)

This product was discontinued.
Recommended replacement: CET FCS Flexible Control System.
The QCC Quad Channel Controller offers 4 channels for monitoring toxic, combustible and/or refrigerant gases with versatile control functionality for non-hazardous, non-explosion rated, commercial and light industrial applications. It is designed to accept inputs from up to four remote digital and/or analog transmitters using digital or 4-20 mA analog input.

Description

Product Details

The QCC is available in two models: the QCC-M with Modbus® RS-485 output or the QCC-B with BACnet® MS/TP output for communicating with a Building Automation System (BAS).

Standard features include, three configurable SPDT dry contact relays with field configurable time delays and trigger levels, an LCD display with LED indicators for channel alarm status, relay status and fault conditions, an extensive menu system with password protection, logic control, a USB port for firmware upgrades and a door mounted, loud audible alarm that is ideal for noisy environments.

Optional value added features include: an analog output module with two analog outputs and data logging, a manual shutoff switch (meets B52 code requirements), a top mounted strobe and a water tight, door mounted audible alarm.

The QCC can be connected to several remote devices such as any of the Remote Strobe & Horns, a QCC-RDM Remote Display Module and the LNK-AO Analog Output Peripheral device.

Features

  • Up to 4 channels of gas readings in any combination of analog and/or digital transmitters
  • Standard Modbus® RS-485 digital output signal for LAN and WAN communications
  • Optional BACnet® MS/TP output signal for WAN communications only (for communicating with a BAS)
  • Optional two 4-20 mA outputs with data logging
  • 3 dry contact relays, 5-amps @240 volts each
  • 4 line, 20 character LCD display with LED indicators

Applications

  • Parking Garages/Car Parks
  • Ice Arenas
  • Commercial Indoor Pools
  • Waste Water Treatment Plants
  • Chiller Rooms

Accessories

Adds-on

CET LNK-AO Analog Output Peripheral Device

CET LNK-XT Network Extender Peripheral Device

CET Remote Relays

CET RPS-24VDC Remote Power Supply

CET QCC-RDM Remote Display

Strobes and Horns

CET Remote Strobe and Horn

CET Remote Strobe & Horn with Timer

CET Remote LED Strobe Light

CET Top Mounted Strobe

CET Remote Industrial Horn

Protectors

CET Metal Protective Guards

CET Manual Shutoff Switch

Product Details

Enter additional product details here, if too long for Short Description section. Delete row if not required.

Videos

CET Quad Channel Controller for Gas Detection Systems

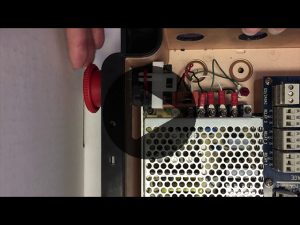

CET How to remove and reassemble the -SW Option in the QCC
