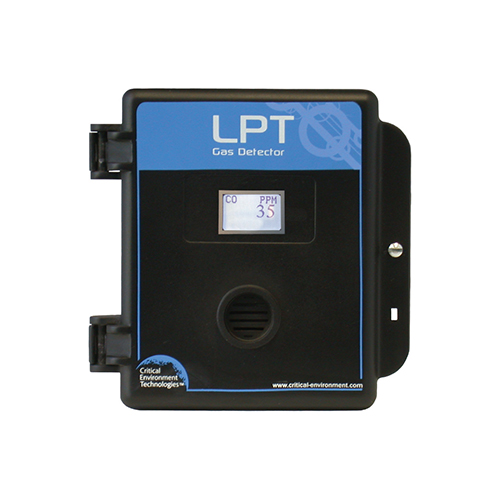

CET LPT-A Analog Transmitter



The CET LPT-A Analogue Transmitter is an economical, single sensor, analogue transmitter available with a wide range of gas sensors and sensor types including electrochemical, solid state, and catalytic.

All models in the LPT series of transmitters come standard with a water / dust tight, corrosion resistant ABS / polycarbonate enclosure with a hinged, secured door. An optional splash guard is also available for water spray or wash down applications. With the splash guard installed, the enclosure is IP54 rated.



Description

Product Details

The LPT-A is a full featured, single sensor, analog transmitter available with a wide range of sensors and sensor types including electrochemical toxic, solid state refrigerants and catalytic combustibles. Operating as an analog transmitter or a stand-alone fixed system, the LPT-A offers 3-wire VDC or 4-wire VAC power, jumper selectable 4 – 20 mA or 0 – 10 VDC analog output, one dry contact relay, thermal resetting fuses, temperature compensation, back lit LCD display and audible alarm, all in a RoHS compliant package.

It comes standard with a water / dust tight, corrosion resistant ABS /polycarbonate enclosure with a hinged, secured door. With the optional splash guard installed, the enclosure is IP54 rated and ideal for use in water spray or wash down applications.

Automated calibration and other maintenance procedures are simple and easily performed in the field. For parking garage applications, our proprietary Calibration Extending Firmware (CEF) takes into account the aging of the sensor so that less frequent calibrations are required. For use in non-hazardous, non-explosion rated commercial and light industrial applications.

Features

  • Full featured, standalone transmitter
  • 3-wire VDC or 4-wire VAC power
  • 24 volt DC or AC power (nominal)
  • Linear 4 – 20 mA or 0 – 10 volt output signal
  • 1 dry contact relay (2 amps @ 30 V SPDT)
  • Single sensor: available with an internal electrochemical sensor or catalytic for combustibles (internal or external) or solid state for refrigerants or TVOCs (internal or external) sensor
  • Graphic LCD display (user selectable, on / off) available with optional heater

Applications

  • Parking Garages/Car Parks
  • Vehicle Repair Shops
  • Commercial Swimming Pools
  • Ice Arenas
  • Ice Cleaning Machine Rooms
  • Manufacturing Plants
  • Maintenance Facilities
