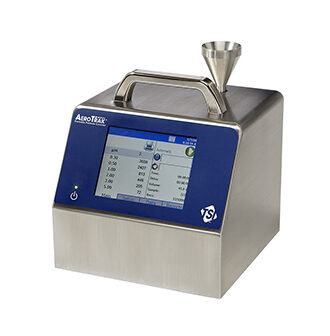

TSI 9310 AeroTrak Portable Particle Counter (For Rent Only)



Please note – This unit has been discontinued for sale as of March 7, 2023 but is available for rent.



The TSI AeroTrak® Portable Particle Counter Model 9310 offers best-in-class features and versatility. The Model 9310 provides a 1.0 CFM (28.3 L/min) flow with 0.3 μm sensitivity. Compatible with TSI’s accurate ventilation probes that measure air velocity/temperature/RH, this product provides you with a complete solution for your certification need. Particle count data can be conveniently viewed on screen, downloaded using TrakPro™ Lite Secure software, or printed directly to the integrated printer.

Enhanced Data Integrity Mode now available – click here for details.

SKU: TSI9310-02-1 Tags: , , , ,

Add to quote

Description

Features

  • 0.3 to 25 μm size range
  • Up to six channels of simultaneous data
  • 1.0 CFM (28.3 L/min) flow rate
  • Complies with all requirements of ISO 21501-4
  • Data storage: 250 zones, 999 locations, and 10,000 samples
  • USB, USB Storage Device and Ethernet data transfer
  • Industry’s loudest audible alarm
  • Easy icon-driven touch screen operation
  • Onboard reports for ISO-14644-1, EU GMP Annex 1, and FS209E
  • External certification reports via TrakPro™ Lite Secure

Applications

  • Particle contamination monitoring
  • Installed filter leak testing
  • Cleanroom certification

Spec Sheets

Application Notes

Brochures

Accessories

Software

TSI TPL-S90 TrakPro Lite Secure Download Software

Parts

TSI M32-01 Aerosol Sampling Manifold

TSI 7960 Aerotrak High Pressure Diffuser

TSI 700068 Aluminum Isokinetic Probe for 1 CFM Portables

TSI 700061 Barbed Inlet Fitting for 1 CFM-50LPM Portables

TSI 700070 Basic Filter Scanning Probe 1 CFM

TSI 700094 Electronic Filter Scanning Probe 1 CFM

TSI 700101 Manifold Adaptor Kit – 9310, 9510, 9110 Only

TSI 700119 Purge Zero Count Filter for 1 CFM and 50 LPM Portables

TSI 700069 Stainless Steel Isokinetic Probe for 9310-9510

TSI 700062 Superthane Tubing .375 ID .5 OD 100 Ft

TSI 700097 Temperature-RH Probe with Cable

Power

TSI 700028 Battery Pack for Aerotrak Portables

TSI 700033 Computer Cable USB A to B

TSI 700029 Dual Battery Charger

TSI 700059 Power Cord-Euro

TSI 700058 Power Cord-UK

TSI 700057 Power Cord-US

FEDCODR202I Batteries

Adds-on

TSI 700087 Heavy Duty Case for Portables

TSI 700027 Printer Paper (10 Rolls)

TSI 962 Air Velocity and Temperature Articulated Probe

TSI 966 Thermoanemometer Articulated Probe

TSI 960 Air Velocity and Temperature Straight Probe

TSI 964 Air Velocity and Temperature Straight Probe
