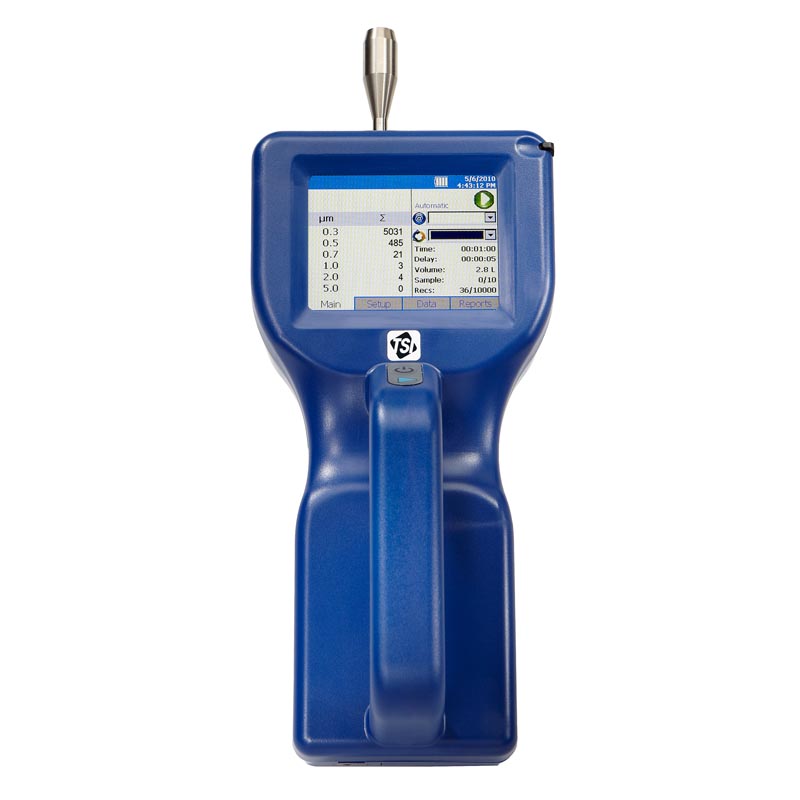

TSI 9306 AeroTrak Handheld Particle Counter



The TSI AeroTrak® Handheld Particle Counter Model 9306 offers the most features and flexibility for customers interested in versatile handheld particle contamination monitoring. The Model 9306 features an ergonomic handle with thumb controls, for easy one-hand operation. The 3.6-inch (9.1-cm) color touch screen interface makes it easy to configure and operate. The Model 9306 can generate Pass/Fail reports for ISO 14644-1, EU GMP Annex 1, and FS209E. Particle count data can be conveniently viewed on screen, downloaded using TrakPro™ Lite Secure Software, or printed directly to an optional external printer.



Features

  • Complies with all requirements of ISO 21501-4
  • 0.3 to 25 μm size range
  • 0.1 CFM (2.83 L/min) flow rate
  • Measures up to six channels of simultaneous data
  • Model 9306-V2 provides unique variable binning option
  • Mass Concentration option (density parameter is user-configurable)
  • Integrated handle for one hand operation
  • Removable, rechargeable Li-ion battery
  • Long life laser diode
  • Compatible with TrakPro™ Lite Secure and FMS 5 software packages

Applications

  • Tracking down particle contamination sources
  • Classifying clean areas
  • Looking for filter leaks
  • Conducting IAQ investigations

Accessories

Software

TSI TPL-S90 TrakPro Lite Secure Download Software

Power

TSI 801694 Power Supply for Handheld

TSI 700032 Battery Pack for AeroTrak 9306

TSI 700033 Computer Cable USB A to B

Adds-on

TSI 7950 Aerotrak High Pressure Diffuser

TSI 700083 Light Duty Carry Case

TSI 700085 Portable Printer for 9306

TSI 700027 Printer Paper (10 Rolls)

Parts

TSI 700001 Aluminum Isokinetic Probe

TSI 700020 Barbed Inlet 0.1 CFM

TSI 700003 Isokinetic Inlet

TSI 700005 Purge (Zero Count) Filter

TSI 700004 Stainless Steel Isokinetic Inlet

TSI 700002 Stainless Steel Isokinetic Probe

TSI 700009 Superthane Tubing .125 ID .25 OD 100 ft

TSI 700084 Temperature-Humidity Probe for 9306
