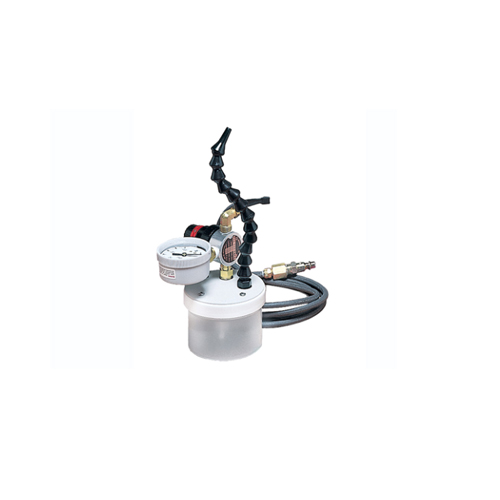

TSI 9302 Single Jet Atomizer



TSI’s Single-Jet Atomizer Model 9302 is the most cost-effective way to generate a polydisperse aerosol stream from a simple compressed air source. It is also TSI’s simplest atomizer with a built-in pressure regulator for controlling air from an external source.

SKU: TSI9302 Tags: , , ,

Add to quote

Description

Product Details

Model 9302 produces particles in concentrations over 107 particles/cm3 at a nominal flow rate of 6.5 L/min. The outlet mean arithmetic droplet size (D10) of 4~5 µm and 40,000 particles/cc make the 9302 ideal for LDV and PDPA system alignment, especially three-component systems. These values are typical for water at 175 kPa (25 psi) inlet pressure. The convenient pressure control and flexible outlet tube allow the user to put the correct amount of aerosol right where it’s needed. The translucent reservoir allows the user to see exactly how much fluid is in the unit.

Features

  • Concentrations over 107 particles/cm3
  • Nominal flow rate of 6.5 L/min
  • Reliable
  • Cost-effective
  • Small package size
  • Convenient pressure control
  • Convenient flexible outlet tube
  • Easy to refill and clean

Applications

  • LDV
  • PDPA
  • Laser setup and alignment
  • Instrument calibration
  • Research requiring polydisperse, high-concentration aerosol
