Description
Product Details
Since the late 1990’s the TSI SMPS™ series serves aerosol research with particle measurements covering nucleation, Aitken and accumulation modes (from 1 nm to 1 µm). Soon the SMPS™ moved out of academic laboratories and was established in atmospheric monitoring stations of research centers, Environmental Protection Agencies (EPAs), and the Global Atmosphere Watch (GAW) program.

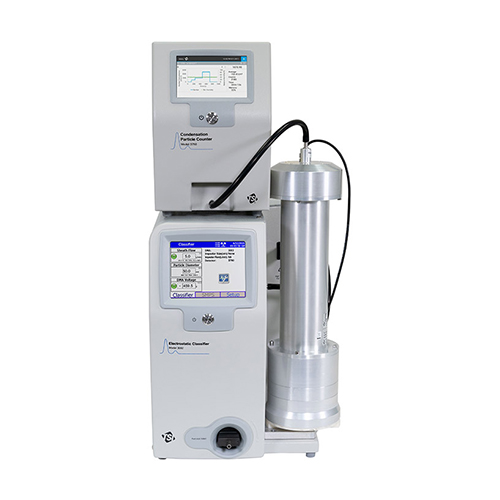

The new updates included in the model 3938W50-CEN extend the size range of the SMPS™ to cover 10 nm to 800 nm in one single scan with the Differential Mobility Analyzer (DMA) 3083. We also modernized the matching sampling system to provide a one-stop solution for air quality monitoring. The updated optional software provides features of particular value for atmospheric monitoring: particle loss correction of the sampling system, extended auto-export of data, and power outage recovery mode. In addition, uncorrected raw concentration data can now be exported to allow harmonized data inversion for large monitoring networks.
Features
- Extended particle size range from 10 nm to 800 nm
- New DMA model 3083 based on TROPOS Vienna type DMA
- Model 3938W50-CEN automatically includes a calibration performed by a facility of the European Center for Aerosol Calibration and Characterization (ECAC), as an independent reference. If desired, the same instrument can be purchased without this calibration included (model 3938W50), and the TROPOS calibration obtained separately
- Scan time down to 1 minute: capture dynamic aerosol distributions (for example, near airports)
Applications
- Air quality monitoring
- Environmental chamber studies
- Indoor air quality studies
- Health effect studies
- Basic aerosol research
Accessories
TSI RHT3000 Aerosol Humidity and Temperature Sensor
TSI 4148 Flow Calibrator
TSI 3750200 Sampling System for Atmospheric Particles
TSI 3032 Vacuum Pump
