TSI 3150 Component Filter Test System (discontinued)



This product has been discontinued.



For applications that are not possible with our automated filter testers, TSI offers the Component Filter Test System (CFTS) Model 3150. It provides flexibility by using components that best meet the needs of the application or test standard requirements. This approach is cost effective; the same components used to test one filter to one standard can be reused to test the next filter to other requirements. The CFTS Model 3150 is a modular platform, pre-configured to work with TSI’s world-class particle generation and measurement instruments. Whether updating an existing system, e.g. to ISO 16890, or designing a new test duct, the CFTS Model 3150 provides an easy to use system with the flexibility to meet your filter testing needs.

SKU: TSI3150 Tags: , , , ,

Description

Product Details

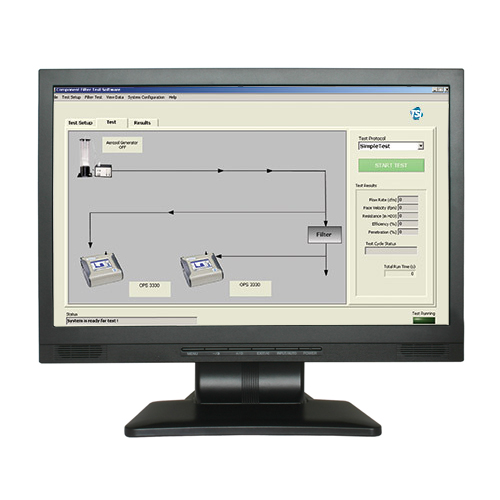

The Component Filter Test System (CFTS) consists of software and a hardware module to centralize the control of your filter test system and to collect measurement data fast and efficiently. The CFTS offers analog and digital inputs, and outputs to measure and control volume flow from pumps or blowers. It has multiple ports to read temperature, pressure and relative humidity. The software logs these data and allows them being used for flow corrections. The software enables defining a test protocol, collects data from the measurement devices, e.g. 3330 OPS, and creates reports. If desired, it will also plot a fractional efficiency curve.

Features

  • Flexible solution for all your filter testing needs
  • Modular system with analog and digital inputs and outputs
  • Ability to define high and low flow rate systems
  • Available components cover a wide range of particle sizes
  • Pre-configured TSI particle sensors, others can be integrated
  • Adapts to existing filter test ducts

Applications

  • Ventilation Filter Testing (ASHRAE 52.2, EN 779, ISO 16890-2)
  • HEPA and ULPA Filter Testing (EN 1822-3, EN 1822-5, IEST RP-CC001/007)
  • Respiratory Filter Testing
  • Automotive Filter Testing

Accessories

TSI 4148 Flow Calibrator
