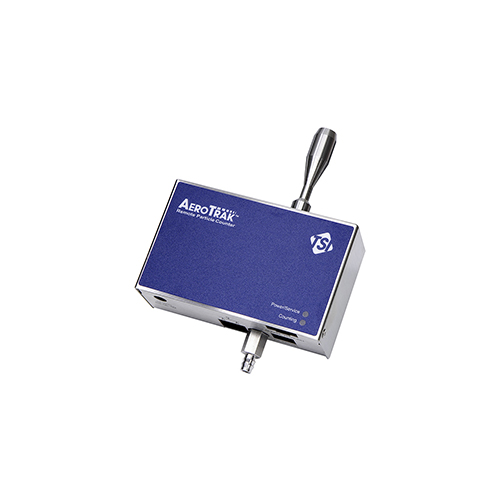

TSI 7201 AeroTrak Remote Particle Counter (discontinued)

This product was discontinued on 1 October 2019.
Recommended replacement: TSI 6310 AeroTrak Remote Particle Counter with Integrated Pump.
The TSI AeroTrak® Remote Particle Counter Model 7201 offers the most features and flexibility out of any remote particle counter on the market today. Integration is easy using either Ethernet (TCP/IP) or Serial Modbus RTU communications. The instrument can be powered over its Ethernet connection (Power-over-Ethernet) to simplify installation, or via a local power supply. Configuration can be done locally with a PC or via a web browser.

SKU: TSI7201 Tags: , , ,

Description

More Information

Features

  • Size range 0.2 – 2 μm
  • 0.1 CFM (2.83 L/min) flow rate
  • Up to 4 channels of simultaneous data
  • Models available with continuous flow output
  • Models available with 2-Channel 4-20 mA output
  • Ethernet (TCP/IP) and serial Modbus output
  • Power-over-Ethernet (PoE) or local power
  • 3,000 sample record storage
  • Static or dynamic IP address (DHCP)

Applications

  • Continuous Particle Contamination Monitoring
  • Semiconductor Clean Room Monitoring
  • Hard Disk Drive
  • Flat Panel Display

Spec Sheets

Application Notes

Brochures

Technical Notes

Accessories

Parts

TSI 700001 Aluminum Isokinetic Probe

TSI 700008 Mounting Bracket

TSI 700008-01 Mounting Bracket with Spacer

TSI 700005 Purge (Zero Count) Filter

TSI 700004 Stainless Steel Isokinetic Inlet

TSI 700002 Stainless Steel Isokinetic Probe

TSI 700009 Superthane Tubing .125 ID .25 OD 100 ft

TSI 700013 Temperature-RH Probe with Cable for Remotes

TSI 700000 Barbed Inlet Fitting for 0.1 CFM Remotes

TSI 700010 Superthane Tubing for 0.1 CFM Remotes

Power

TSI 700059 Power Cord-Euro

TSI 700058 Power Cord-UK

TSI 700057 Power Cord-US

TSI 700006 Power Supply for 7000 Series Remotes
