Description
Product Details

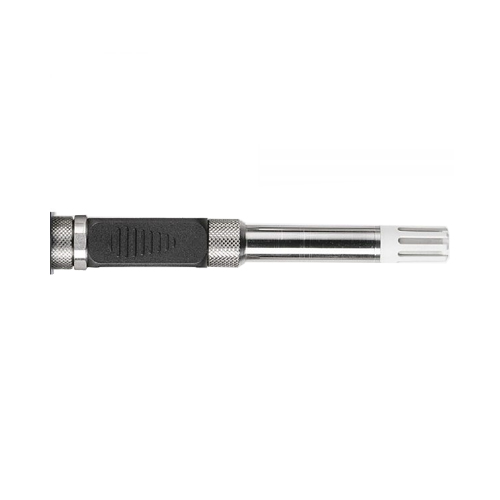

Combined temperature and relative humidity probe. Capacitive RH sensor, Pt100 temperature sensor.
Probe stem Ø 14 mm, length 110 mm. Cable length 2 metres. Equipped with SICRAM module.
- Measuring range: Temperature: -40…100 °C – R.H.: 0…100%
- Resolution: 0.1 °C / 0.1 %RH
- Accuracy: Temperature: 1/3 DIN – R.H.: ±1.5% (0…90%RH) / ±2% (90…100%RH) @ T=15…35 °C (1.5 + 1.5% measure)% @ T= remaining range
- Temperature drift @ 20 °C: 0.02 %RH/°C
- Long term stability: 0.1 %RH/year
- Connection: 8-pole female DIN45326 connector
- Response time T95: 15 minutes
The probe is used with Thermal Comfort data loggers HD32.1 and HD32.3TCA for calculating the following indices:
- IREQ – Required insulation
- DLE – Exposure time limit
- RT – Required recovery time
- WCI – Wind Chill Index
- PMV – Predicted Average Rating
- PPD – Dissatisfied percentage
- DR – Draught rate
On request, humidity ISO 17025 certificate Isotherm A and 4 temperature fixed points (VACCREDIA-U10).
